Follower (Slave)#

It is the crawler instance who receives order from Leader to do something. About the Follower existence meaning, it is mostly same as the Runner in the no-leader usage. In other words, it is the one who is responsible of running all orders which be given by Leader. And what kind of commands it should do depend on what role it is in cluster.

Responsibility#

Here it would explain the details what things it should do as each different roles.

Runner#

Runner is same as the definition of enum value CrawlerStateRole.RUNNER in CrawlerRole.

Backup Runner#

Backup Runner is also mostly same as the definition of enum value CrawlerStateRole.BACKUP_RUNNER in CrawlerRole. The only difference is who monitor Runner crawler instance. So let’s discussion it in different scenarios as following.

Monitor Runner by itself#

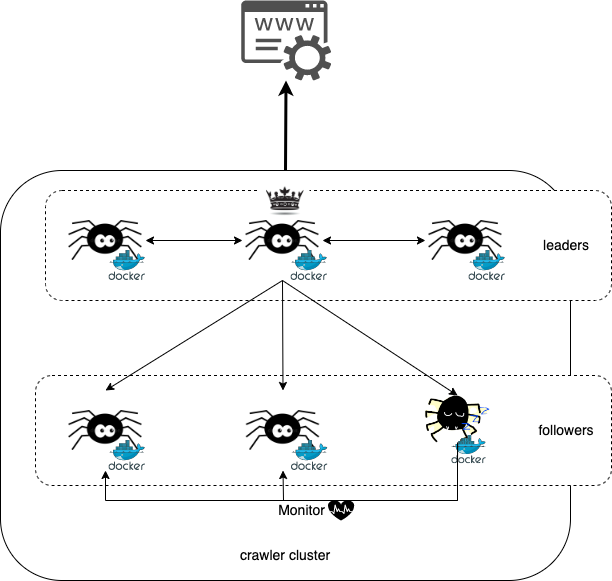

It monitors the Runner state by Backup Runner. So the relation in infra would be like as below:

../../_images/has_leader-some_are_runners_and_backup_monitor_runner.drawio.png

The running would be same as usage no leader in cluster as Some are Runner. The main body to run the monitoring is Backup Runner.

Monitor Runner by its leader#

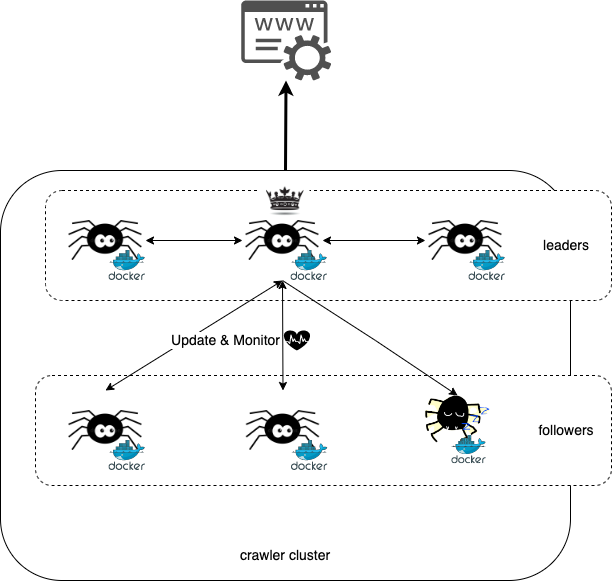

It monitors the Runner state by Backup Runner’s Leader. So the relation in infra would be like as below:

../../_images/has_leader-some_are_runners_and_leader_monitor_runner.drawio.png

Leader would help Backup Runner to monitor other Runner’s running state, and it would notify Backup Runner needs to activate to replace the dead Runner and hand over its task to run. So the Backup Runner only waits for the notification from Leader.
