Introduce

SmoothCrawler-Cluster is a Python library which encapsulates cluster features for crawler, aka web spider, to let developers could design and build a crawler cluster easily and could be easy and humanly for develop and maintain.

Regardless of SmoothCrawler or SmoothCrawler-Cluster, they all provide a direction how to design and build crawler, the former for general usage, the latter for usage in cluster.

See also

If you’re new in SmoothCrawler and doesn’t know what it is, please refer to What is SmoothCrawler to more understand of it.

So what exactly SmoothCrawler-Cluster want to do? This question could be aligned with what cluster concern want to resolve? In a nutshell, one of issues what cluster want to resolve is: let program or system to be more better of fault tolerance to ensure system could keep running and as doesn’t have any problems to user when it occurs problems. Therefore, SmoothCrawler-Cluster want to help developers design and implement a crawler which has high fault tolerance humanly.

Let’s briefly explain that how the crawler program would run with SmoothCrawler-Cluster.

How it run

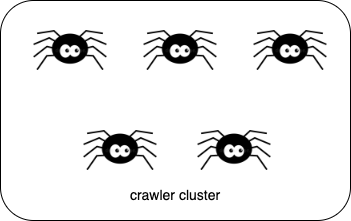

First, let’s assume that it has 5 single crawler instances and they are in the same group as a crawler cluster.

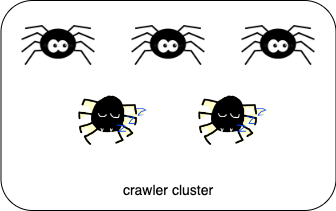

In current version, it would run an election to decide to which is/are Runner and the rest is/are Backup Runner. Here we assume that it would elect 3 Runner and the rest 2 ones are Backup Runner.

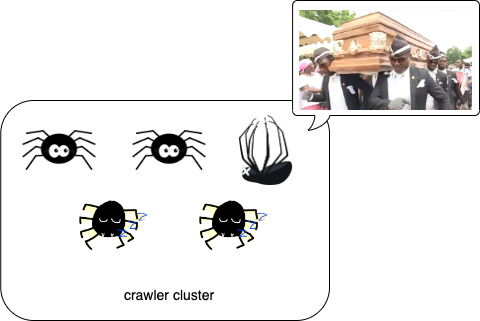

However, it occurs something wrong and it leads to one of crawler instances to be dead.

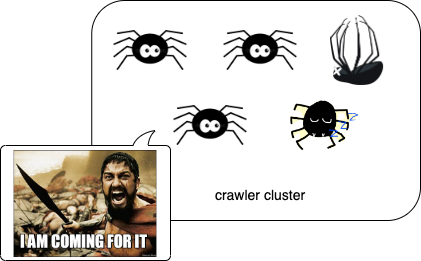

After it exists dead Runner, that issue would be detected by Backup Runner and activate to be Runner by itself.

Therefore, the Runner which is original Backup Runner would hand over the task from dead Runner if it has. Finally, it would keep running as Runner from now on.

Above demonstrate how it works in SmoothCrawler-Cluster, so let’s explain the brief of work flow further.

Brief of work flow

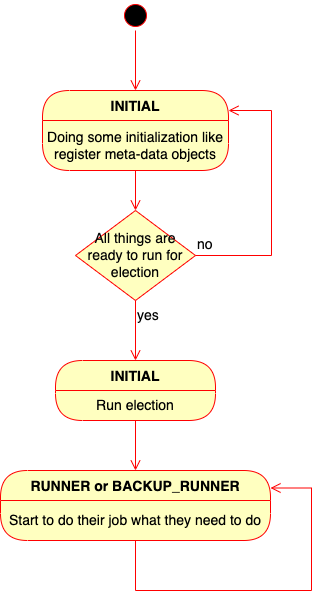

Now, we know how it works about fault tolerance. Here would show you the brief of work flow:

Before running, it would run election first to decide to which is/are Runner. And before it run an election, it should create and register the meta data objects first.

Every instances should be explore its self info and check other’s info to let cluster could judge to do right things and run finely. So finally these crawler instances converges to a stable state — Runner and Backup Runner has been setup and they all has been doing their own job finely.

See also

If you’re curious and want to get more details of work flow, please refer to Work Flow to get more info.

How it should be easily written as

Here would demonstrate a sample code with SmoothCrawler-Cluster usage to you.

Absolutely, you need to implement the SmoothCrawler components first.

See also

About SmoothCrawler components, please refer to How to use and implement SmoothCrawler component to get more detail.

After you done the component implementations, it’s nothing special of usage. It also instantiates crawler and run it as below:

from smoothcrawler_cluster import ZookeeperCrawler

# Instantiate some crawlers with Zookeeper
zk_crawler = ZookeeperCrawler(runner=2,
                              backup=1,
                              ensure_initial=True,
                              zk_hosts="localhost:2181")
# Same as SmoothCrawler general usage, register the components into factory
zk_crawler.register_factory(http_req_sender=RequestsHTTPRequest(),
                            http_resp_parser=RequestsExampleHTTPResponseParser(),
                            data_process=ExampleDataHandler())
# Listen and wait for tasks
zk_crawler.run()

The a little bit different is: before you instantiate crawler, you should make sure whether the Zookeeper service is accessible or not.

Finally, current version only supports one crawler — ZookeeperCrawler. It would keep improving and developing this package to let developers has more choices and humanly to use it.
