Crawler#

Crawler Module#

UML#

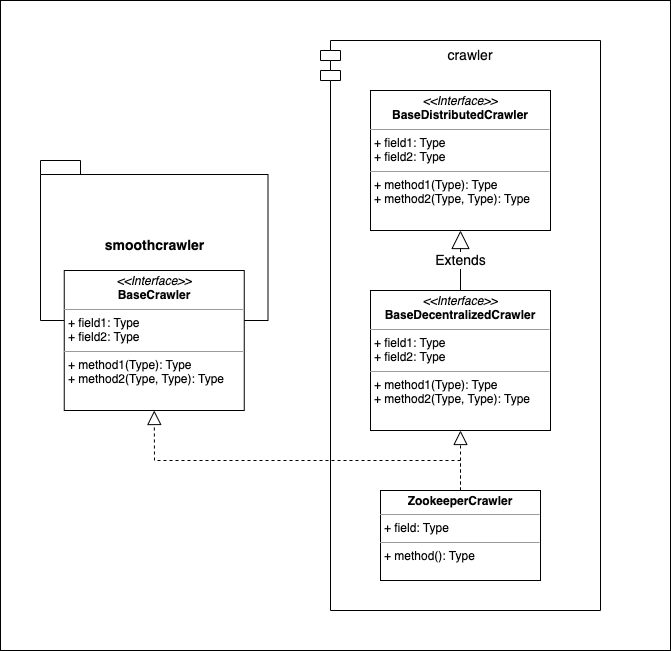

../../../_images/crawler_uml.drawio.png

Description#

It has 3 layers of the crawler’s extending: BaseDistributedCrawler, BaseDecentralizedCrawler and SmoothCrawler’s BaseCrawler, ZookeeperCrawler. We could divide them as below:

  • BaseDistributedCrawler: Primary base class layer

  • BaseDecentralizedCrawler and SmoothCrawler’s BaseCrawler: Second base class layer

  • ZookeeperCrawler: Implementation layer

SmoothCrawler-Cluster is a package which encapsulates some features to let SmoothCrawler could have more higher fault tolerance as a cluster system. But for a cluster system, it could be briefly divided to 2 different types: Centralize and Decentralize. So it also follows this concept to design the software architecture of SmoothCrawler-Cluster.

Primary base class layer#

Modules:

  • BaseDistributedCrawler

This is the base class of all second base classes. However, it just rules the most foundational features about cluster. It won’t have some very clear design or direction to let sub-class to know it should be centralize, decentralize or something else object.

Attention

Because the primary base class doesn’t rule any clear functions to let sub-class could be have more apparently directions, it should NOT be extended by Implementation layer directly. It ONLY for Secondary base layer.

Secondary base class layer#

Modules:

  • BaseCentralizedCrawler (would be support in version 0.2.0)

  • BaseDecentralizedCrawler

  • SmoothCrawler’s BaseCrawler

The second base classes which extends the primary base one to let its design and direction to be more clear. So the objects in this layer would be apparently focus on one direction like centralize cluster or decentralize cluster.

Here layer also includes SmoothCrawler’s BaseCrawler because all of SmoothCrawler should be ruled by it.

Note

This layer is helpful for Implementation layer to implement. So all the objects in Implementation layer should extend Secondary base class.

Implementation layer#

Modules:

  • ZookeeperCrawler

The layer is the crawler implementation. But it won’t extend all secondary base classes, it would only extend one of it, i.e., ZookeeperCrawler only extends BaseDecentralizeCrawler and implements its features.

Crawler Module’s relation with other modules#

This is the core of SmoothCrawler-Cluster package, so it would be more complicate. Here demonstrate the relation between

UML#

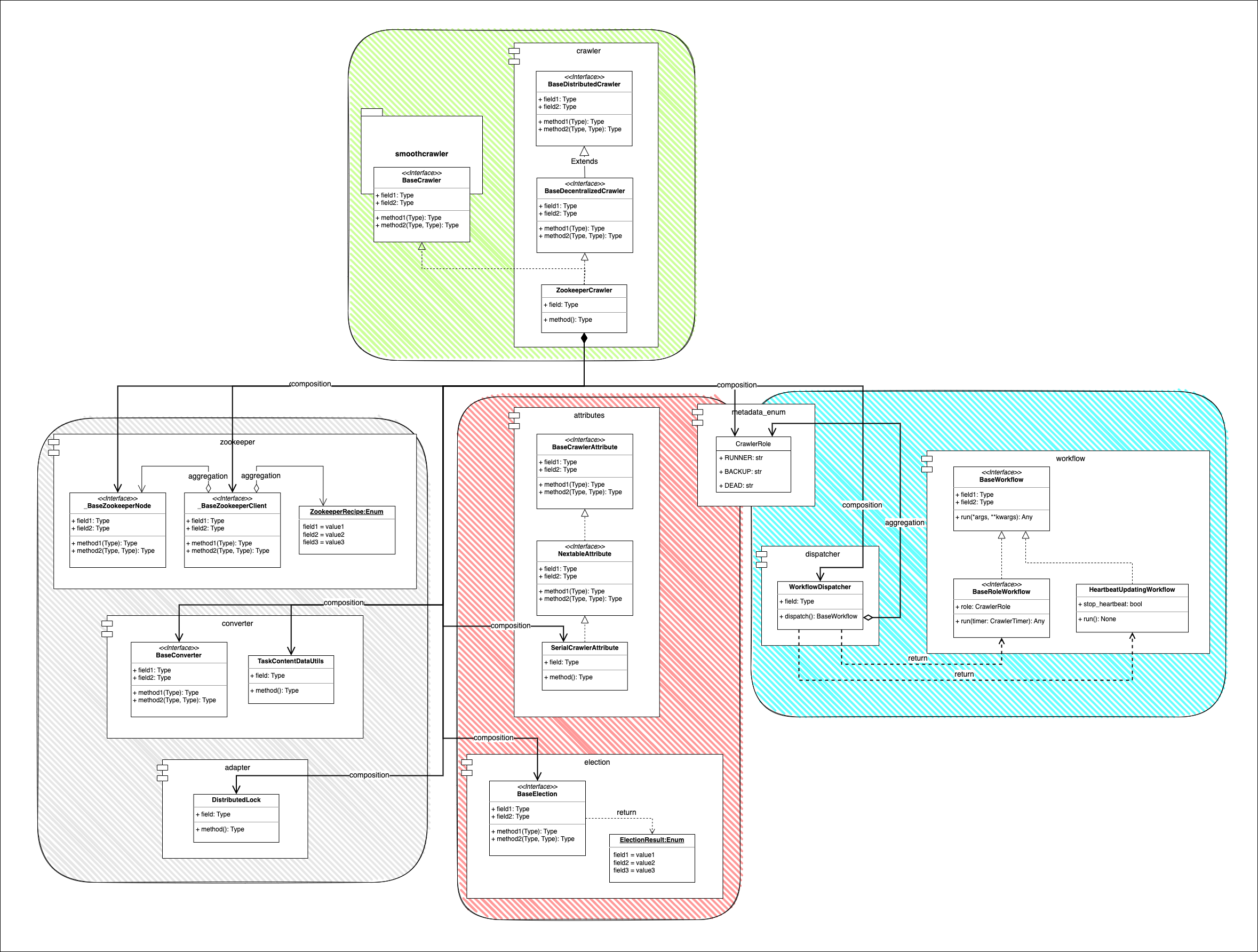

../../../_images/crawler_relation_uml.drawio.png

Description#

Crawler module has aggregation relation with many classes in different modules. Here would clear that which modules is in the relation and why use it in crawler module.

In briefly, it could divide the relationship to be 3 sections of module crawler.crawlers:

  • Basic attributes and election

  • Meta-data operations and communication

  • Crawler role’s responsibility and running

Basic attributes and election (Red square)#

Aggregation with crawler.attributes module#

To generate crawler’s basic attributes, e.g., name, identity, etc, for running Runner election.

Aggregation with election module#

About running Runner election, it would use the strategy in election module to run.

Meta-data operations and communication (Grey square)#

Aggregation with _utils.zookeeper module#

Crawler would use zookeeper module to build session and do some operations with Zookeeper.

Aggregation with _utils.converter module#

All the meta-data objects would be processed by converter module.

Aggregation with crawler.adapter module#

For some special operations, i.e., operate something with one specific node synchronously (with a distributed lock).

Crawler role’s responsibility and running (Blue square)#

Aggregation with crawler.workflow module#

To run the specific crawler role’s jobs. For objects in crawler.crawlers module, it could use it directly without any checking or something else.

Aggregation with crawler.dispatcher module#

The dispatcher who takes care which workflow the crawler should call and use it by crawler’s role. For objects in crawler.crawlers module, it needs get the needed workflow through crawler.dispatcher module to dispatch for crawler.

Note

About the details of the relationship between modules dispatcher, workflow and crawler, please refer to below links to get more info:
