Workflow

• Module: smoothcrawler_cluster.crawler.workflow

• API reference: Workflow

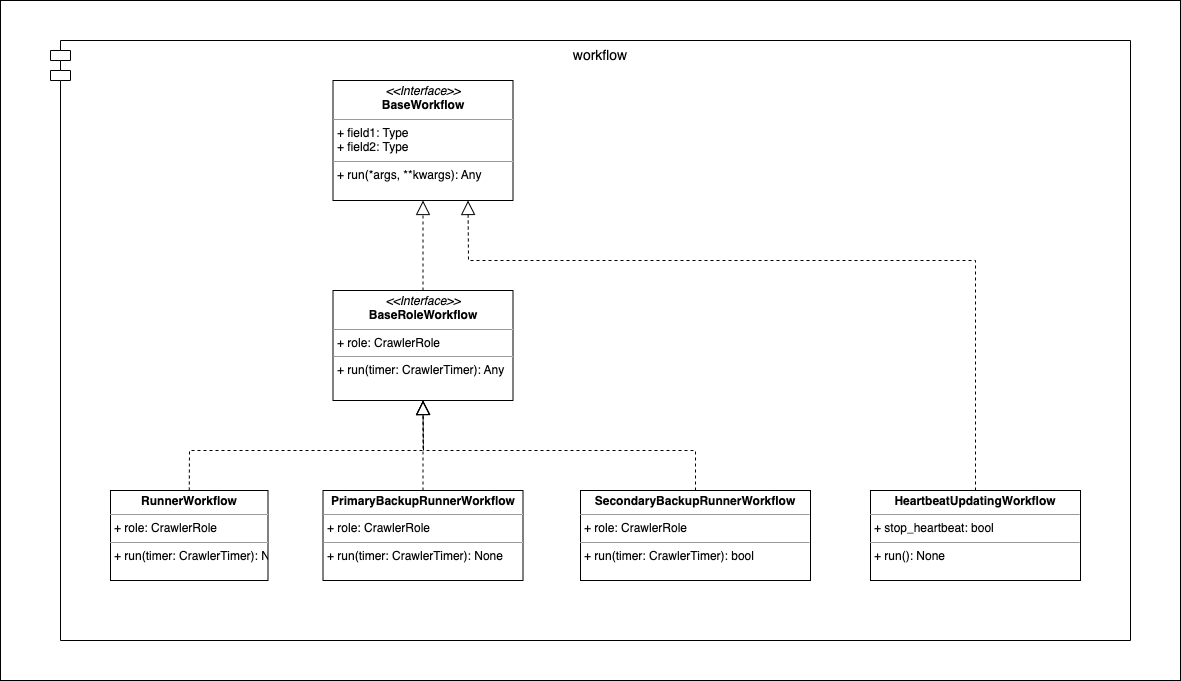

UML

Description

It has 2-3 layers in the software architecture in module crawler.workflow: Base workflow, Base crawler role workflow and Implementation.

Base workflow

The class in this layer defines the most basic function a workflow class must to have. It won’t have any property or implemented function.

Object:

• Base Workflow

Base crawler role’s workflow

This is also a base class about extending the feature of above one. The class of this layer has a property role about what the crawler role current crawler instance’s is.

Object:

• Base Workflow for crawler role

Implementation

Literally, all the classes in this layer are implementation of one of base classes. And they also are the target which would be dispatched by the objects in crawler.dispatcher module.

Object:

• The implementations of Base workflow directly

  • Heartbeat Updating Workflow

• The implementations of Base crawler role’s workflow

  • Runner Workflow

  • Primary Backup Runner Workflow

  • Secondary Backup Runner Workflow
